CY7C1049GE, CY7C1049G 4-Mbit (512K words x 8 bit) Static RAM

CY7C1049GE Description

CY7C1049G CY7C1049GE 4-Mbit (512K words × 8 bit) Static RAM with Error-Correcting Code (ECC) 4-Mbit (512K words × 8 bit) Static RAM with Error-Correc.
CY7C1049G and CY7C1049GE are high-performance CMOS fast static RAM devices with embedded ECC.

CY7C1049GE Features

* High speed
* tAA = 10 ns
* Embedded ECC for single-bit error correction[1]
* Low active and standby currents
* Active current: ICC = 38 mA typical
* Standby current: ISB2 = 6 mA typical
* Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and 4.5 V to 5.5 V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CY7C1049GE, CY7C1049G. Please refer to the document for exact specifications by model.

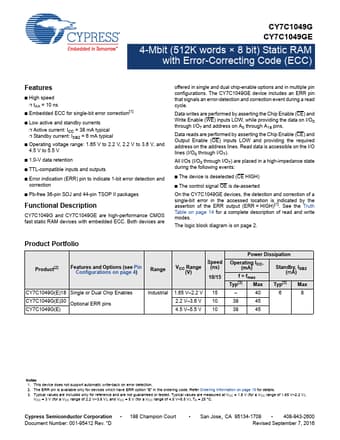

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CY7C1049GE, CY7C1049G
Manufacturer
Cypress Semiconductor
File Size
778.19 KB
Datasheet
CY7C1049G-CypressSemiconductor.pdf
Description
4-Mbit (512K words x 8 bit) Static RAM
Note
This datasheet PDF includes multiple part numbers: CY7C1049GE, CY7C1049G.
Please refer to the document for exact specifications by model.
