Part number:
CY7C1141V18
Manufacturer:
Cypress Semiconductor
File Size:
1.18 MB
Description:
(cy7c11xxv18) sram 4-word burst architecture.

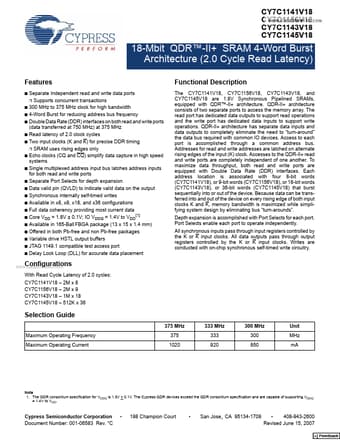

CY7C1141V18 Datasheet (1.18 MB)
CY7C1141V18 Datasheet (1.18 MB)
CY7C1141V18
Cypress Semiconductor
1.18 MB
(cy7c11xxv18) sram 4-word burst architecture.
* Separate Independent read and write data ports
* Supports concurrent transactions
* 300 MHz to 375 MHz clock for high bandwidth
* 4-Word Burst for reducing address bus frequency
* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 750 MHz) at 375 MHz
