CY7C1143V18, CY7C1141V18 Datasheet - Cypress Semiconductor

CY7C1143V18 (CY7C11xxV18) SRAM 4-Word Burst Architecture

The CY7C1141V18, CY7C1156V18, CY7C1143V18, and CY7C1145V18 are 1.8V Synchronous Pipelined SRAMs, equipped with QDR™-II+ architecture. QDR-II+ architecture consists of two separate ports to access the memory array. The read port has dedicated data outputs to support read operations and the write port.

CY7C1143V18 Features

* Separate Independent read and write data ports

* Supports concurrent transactions

* 300 MHz to 375 MHz clock for high bandwidth

* 4-Word Burst for reducing address bus frequency

* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 750 MHz) at 375 MHz

CY7C1141V18_CypressSemiconductor.pdf

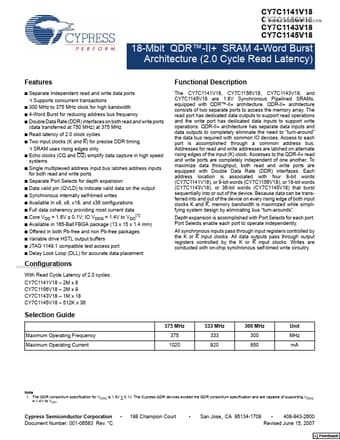

CY7C1143V18 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C1143V18, CY7C1141V18. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C1143V18, CY7C1141V18

Manufacturer:

Cypress Semiconductor

File Size:

1.18 MB

Description:

(cy7c11xxv18) sram 4-word burst architecture.

Note:

This datasheet PDF includes multiple part numbers: CY7C1143V18, CY7C1141V18.
Please refer to the document for exact specifications by model.
