CY7C1145V18

(CY7C11xxV18) SRAM 4-Word Burst Architecture

CY7C1145V18 Features

* Separate Independent read and write data ports

* Supports concurrent transactions

* 300 MHz to 375 MHz clock for high bandwidth

* 4-Word Burst for reducing address bus frequency

* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 750 MHz) at 375 MHz

CY7C1145V18 General Description

The CY7C1141V18, CY7C1156V18, CY7C1143V18, and CY7C1145V18 are 1.8V Synchronous Pipelined SRAMs, equipped with QDR™-II+ architecture. QDR-II+ architecture consists of two separate ports to access the memory array. The read port has dedicated data outputs to support read operations and the write port.

CY7C1145V18 Datasheet (1.18 MB)

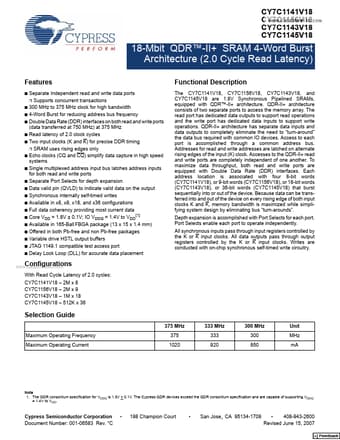

Preview of CY7C1145V18 PDF
