CY7C1145KV18

18-Mbit QDR II+ SRAM Four-Word Burst Architecture

CY7C1145KV18 Features

* Separate independent read and write data ports

* Supports concurrent transactions

* 450-MHz clock for high bandwidth

* Four-word burst for reducing address bus frequency

* Double data rate (DDR) Interfaces on both read and write ports (data transferred at 900 MHz) at 450 MHz

CY7C1145KV18 Datasheet (646.01 KB)

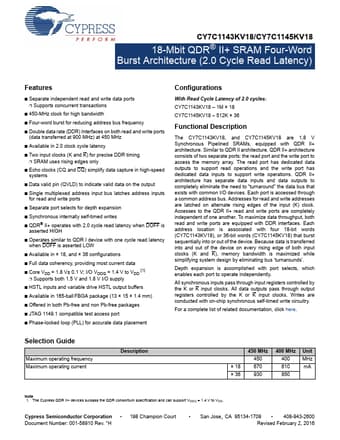

Preview of CY7C1145KV18 PDF

Datasheet Details

Part number:

CY7C1145KV18

Manufacturer:

Cypress Semiconductor

File Size:

646.01 KB

Description:

18-mbit qdr ii+ sram four-word burst architecture.
 CY7C1143KV18/CY7C1145KV18 18-Mbit QDR® II+ SRAM Four-Word Burst Architecture (2.0 Cycle Read Latency) 18-Mbit QDR® II+ SRAM Four-Word Burst Archite.
