CY7C130 Datasheet - Cypress Semiconductor

CY7C130 1K x 8 Dual-Port Static RAM

The CY7C130/130A/CY7C131/131A/CY7C140[1] and CY7C141 are high speed CMOS 1K by 8 dual-port static RAMs. Two ports are provided permitting independent access to any location in memory. The CY7C130/130A/ CY7C131/131A can be used as either a s.

CY7C130 Features

* True dual-ported memory cells, which allow simultaneous reads of the same memory location

* 1K x 8 organization

* 0.65 micron CMOS for optimum speed and power

* High speed access: 15 ns

* Low operating power: ICC = 110 mA (maximum)

* Fully asynchronous operation

* Autom

CY7C130-CypressSemiconductor.pdf

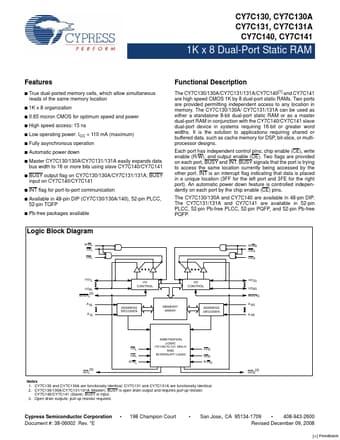

Preview of CY7C130 PDF
CY7C130 Datasheet Preview Page 2 CY7C130 Datasheet Preview Page 3

Datasheet Details

Part number:

CY7C130

Manufacturer:

Cypress Semiconductor

File Size:

367.32 KB

Description:

1k x 8 dual-port static ram.
