CY7C1371D, CY7C1373D - 18-Mbit (512 K x 36/1 M x 18) Flow-Through SRAM

Cypress Semiconductor

📥 Download Datasheet

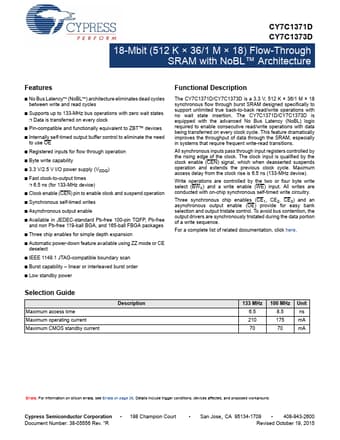

CY7C1371D Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C1371D, CY7C1373D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY7C1371D, CY7C1373D
Manufacturer	Cypress Semiconductor
File Size	802.19 KB
Description	18-Mbit (512 K x 36/1 M x 18) Flow-Through SRAM
Datasheet	CY7C1373D_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1371D, CY7C1373D. Please refer to the document for exact specifications by model.

CY7C1371D Product details

Description

The CY7C1371D/CY7C1373D is a 3.3 V, 512 K × 36/1 M × 18 synchronous flow through burst SRAM designed specifically to support unlimited true back-to-back read/write operations with no wait state insertion.

Features

No Bus Latency (NoBL) architecture eliminates dead cycles between write and read cycles.
Supports up to 133-MHz bus operations with zero wait states.
Data is transferred on every clock.
Pin-compatible and functionally equivalent to ZBT™ devices.
Internally self-timed output buffer control to eliminate the need to use OE.
Registered inputs for flow through operation.
Byte write capability.
3.3 V/2.5 V I/O power supply (VDDQ).
Fast clock-to-output ti.
