CY7C1523V18

The CY7C1523V18 is 72-Mbit DDR-II SIO SRAM 2-Word Burst Architecture designed by Cypress Semiconductor.

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CY7C1523V18, CY7C1522V18
Manufacturer	Cypress Semiconductor
File Size	491.53 KB
Description	72-Mbit DDR-II SIO SRAM 2-Word Burst Architecture
Datasheet	CY7C1522V18_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1523V18, CY7C1522V18. Please refer to the document for exact specifications by model.

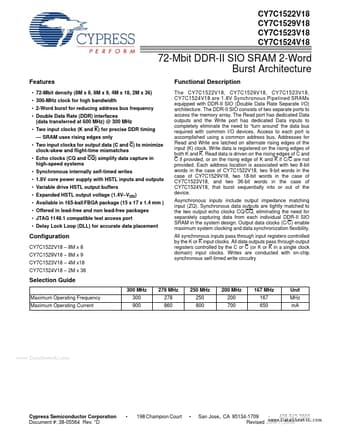

Additional preview pages of the CY7C1523V18 datasheet.

Product details

Description

The CY7C1522V18, CY7C1529V18, CY7C1523V18, CY7C1524V18 are 1.8V Synchronous Pipelined SRAMs equipped with DDR-II SIO (Double Data Rate Separate I/O) architecture.

Features

72-Mbit density (8M x 8, 8M x 9, 4M x 18, 2M x 36).
300-MHz clock for high bandwidth.
2-Word burst for reducing address bus frequency.
Double Data Rate (DDR) interfaces (data transferred at 600 MHz) @ 300 MHz.
Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
Two input clocks for output data (C and C) to minimize clock-skew and flight-time mismatches.
Echo clocks (CQ and CQ) simplify data captu.
