MTB012N04Q8 - N-Channel Enhancement Mode Power MOSFET

Cystech Electonics

The MTB012N04Q8 by Cystech Electonics is a N-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	MTB012N04Q8
Manufacturer	Cystech Electonics
File Size	429.66 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	MTB012N04Q8-CystechElectonics.pdf

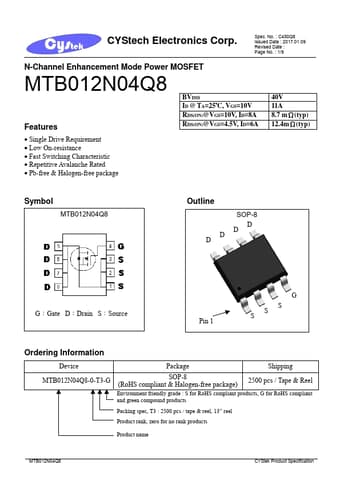

Additional preview pages of the MTB012N04Q8 datasheet.

BVDSS ID @ TA=25°C, VGS=10V RDS(ON)@VGS=10V, ID=8A RDS(ON)@VGS=4.5V, ID=6A.
Single Drive Requirement.
Low On-resistance.
Fast Switching Characteristic.
Repetitive Avalanche Rated.
Pb-free & Halogen-free package 40V 11A 8.7 mΩ(typ) 12.4mΩ(typ) Symbol MTB012N04Q8 Outline DD SOP-8 DD G：Gate D：Drain S：Source Pin 1 G SSS Ordering Information Device Package Shipping MTB012N04Q8-0-T3-G SOP-8 (RoHS compliant & Halogen-free package) 2500 pcs /.
