DMN10H170SFGQ

N-CHANNEL MOSFET

DMN10H170SFGQ Features

* BVDSS 100V RDS(ON) max 122mΩ @ VGS = 10V 133mΩ @ VGS = 4.5V ID max TA = +25°C 2.9A 2.7A Description and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:

* Motor Contr

DMN10H170SFGQ General Description

and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Motor Control
* Power Management Functions
* DC-DC Converters
* 100% Unclamped Inductive Switching, Te.

DMN10H170SFGQ Datasheet (512.07 KB)

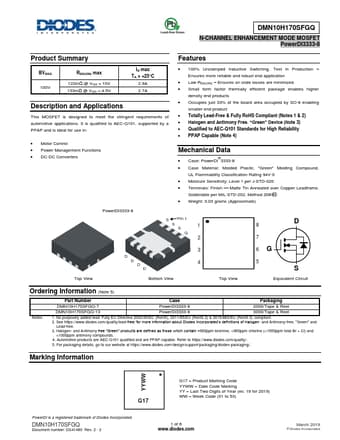

Preview of DMN10H170SFGQ PDF

Datasheet Details

Part number:

DMN10H170SFGQ

Manufacturer:

DIODES ↗

File Size:

512.07 KB

Description:

N-channel mosfet.
