* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* For automotive applications requiring specific change control (i.e. part

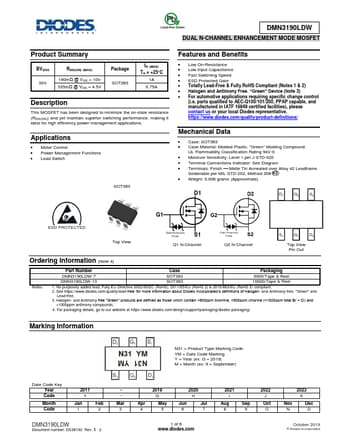

DMN3190LDW Datasheet (528.30 KB)
DMN3190LDW
528.30 KB
Dual n-channel mosfet.
DMN3190LDW
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 30V
RDS(ON) (MAX)
190mΩ @ VGS = 10V 335mΩ @ VGS = 4.5V
Package SOT363
ID .
