F59L1G81MA-25TG2Y - 1 Gbit (128M x 8) 3.3V NAND Flash Memory

Product Overview

ESMT

Part number	F59L1G81MA-25TG2Y
Manufacturer	ESMT
File Size	1.02 MB
Description	1 Gbit (128M x 8) 3.3V NAND Flash Memory
Datasheet	F59L1G81MA-25TG2Y Datasheet

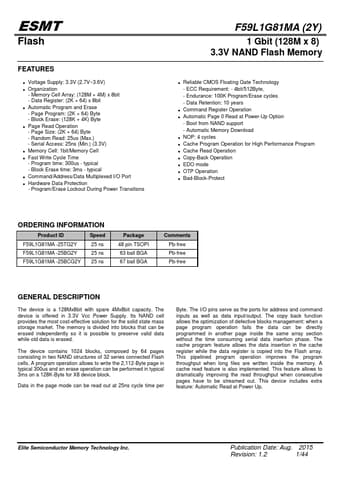

Additional preview pages of the F59L1G81MA-25TG2Y datasheet.

Voltage Supply: 3.3V (2.7V~3.6V) Organization - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit Automatic Program and Erase - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte Page Read Operation - Page Size: (2K + 64) Byte - Random Read: 25us (Max. ) - Serial Access: 25ns (Min. ) (3.3V) Memory Cell: 1bit/Memory Cell Fast Write Cycle Time - Program time: 300us - typical - Block Erase time: 3ms - typical Command/Address/Data Multiplexed I/O Port Hardware Data Prot.
