FSL106HR - Green Mode Fairchild Power Switch

Fairchild Semiconductor

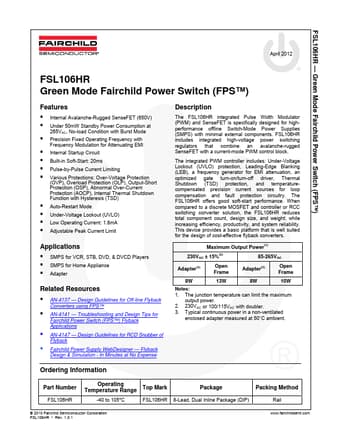

FSL106HR Datasheet Preview — Preview of FSL106HR PDF

Datasheet Details

Part number	FSL106HR
Manufacturer	Fairchild ↗ Semiconductor
File Size	939.58 KB
Description	Green Mode Fairchild Power Switch
Datasheet	FSL106HR-FairchildSemiconductor.pdf

FSL106HR Product details

Description

The FSL106HR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for highperformance offline Switch-Mode Power Supplies (SMPS) with minimal external components.

Features

Internal Avalanche-Rugged SenseFET (650V).
Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode.
Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI.
Internal Startup Circuit.
Built-in Soft-Start: 20ms.
Pulse-by-Pulse Current Limiting.
Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal S.
