IRF654B Datasheet - Fairchild Semiconductor

IRF654B - 250V N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a

IRF654B Features

* 21A, 250V, RDS(on) = 0.14Ω @VGS = 10 V Low gate charge ( typical 95 nC) Low Crss ( typical 60 pF) Fast switching 100% avalanche tested Improved dv/dt capability D G G DS TO-220 IRF Series GD S TO-220F IRFS Series S Absolute Maximum R

IRF654B_FairchildSemiconductor.pdf

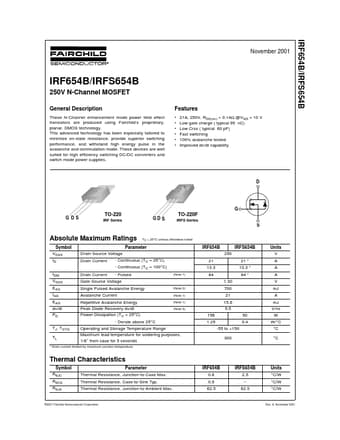

Preview of IRF654B PDF
IRF654B Datasheet Preview Page 2 IRF654B Datasheet Preview Page 3

Datasheet Details

Part number:

IRF654B

Manufacturer:

Fairchild Semiconductor

File Size:

867.92 KB

Description:

250v n-channel mosfet.
