IRF650 Datasheet - Fairchild Semiconductor

IRF650 200V N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

IRF650 Features

* 28A, 200V, RDS(on) = 0.085Ω @VGS = 10 V Low gate charge ( typical 95 nC) Low Crss ( typical 75 pF) Fast switching 100% avalanche tested Improved dv/dt capability D G G DS TO-220 IRF Series GD S TO-220F IRFS Series S Absolute Maximum

IRF650_FairchildSemiconductor.pdf

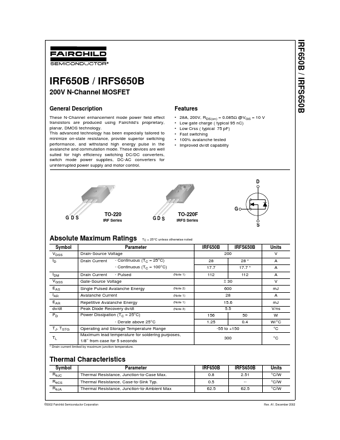

Preview of IRF650 PDF
IRF650 Datasheet Preview Page 2 IRF650 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF650

Manufacturer:

Fairchild Semiconductor

File Size:

898.48 KB

Description:

200v n-channel mosfet.
