IRFR230A, IRFU230A Advanced Power MOSFET

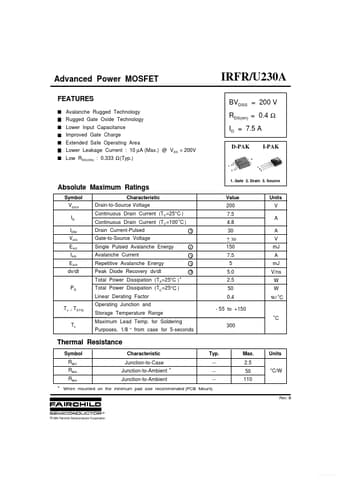

📥 Download Datasheet  Datasheet Preview Page 1

Description

Advanced Power MOSFET .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFR230A, IRFU230A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRFR230A, IRFU230A
Manufacturer
Fairchild Semiconductor
File Size
280.64 KB
Datasheet
IRFU230A-FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFR230A, IRFU230A.
Please refer to the document for exact specifications by model.

Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µA (Max. ) @ VDS = 200V Low RDS(ON) : 0.333 Ω (Typ. ) IRFR/U230A BVDSS = 200 V RDS(on) = 0.4 Ω ID = 7.5 A D-PAK 2 1 3 1 I-PAK 2 3 1. Gate 2
