IRFR234B - 250V N-Channel MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

IRFR234B 250V N-Channel MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRFR234B

Datasheet Details

Part number	IRFR234B
Manufacturer	Fairchild Semiconductor
File Size	640.93 KB
Description	250V N-Channel MOSFET
Datasheet	IRFR234B Datasheet
Note	This datasheet PDF includes multiple part numbers: IRFR234B, IRFU234B. Please refer to the document for exact specifications by model.

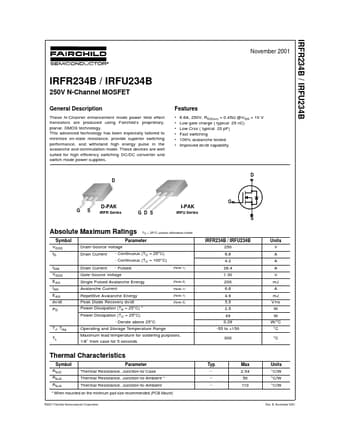

Additional preview pages of the IRFR234B datasheet.

Product details

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

Features

6.6A, 250V, RDS(on) = 0.45Ω @VGS = 10 V Low gate charge ( typical 29 nC) Low Crss ( typical 20 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !.
◀ ▲.
G! G S D-PAK IRFR Series I-PAK G D S IRFU Series ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuous.
