FPD750P100 Datasheet, Phemt, Filtronic Compound Semiconductors

FPD750P100 Features

  • Phemt
  • 26.5 dBm Linear Output Power
  • 18.5 dB Power Gain at 2 GHz
  • 11.5 dB Maximum Stable Gain at 10 GHz
  • 36 dBm Output IP3
  • 45% Power-Added Effici

PDF File Details

Part number:

FPD750P100

Manufacturer:

Filtronic Compound Semiconductors

File Size:

214.15kb

Download:

📄 Datasheet

Description:

0.5w packaged power phemt. AND APPLICATIONS The FPD750P100 is a packaged AlGaAs/InGaAs pseudomorphic High Electron Mobility Transistor (PHEMT), featuring a 0.2

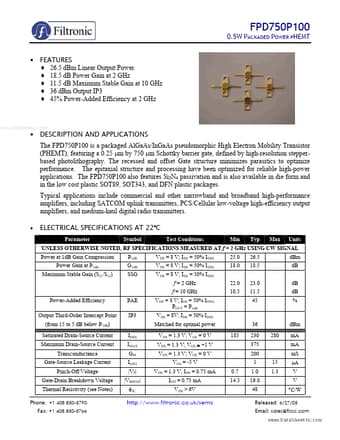

Datasheet Preview: FPD750P100 📥 Download PDF (214.15kb)
Page 2 of FPD750P100 Page 3 of FPD750P100

FPD750P100 Application

  • Applications The FPD750P100 is a packaged AlGaAs/InGaAs pseudomorphic High Electron Mobility Transistor (PHEMT), featuring a 0.25 µm by 750 µm Scho
