FPD750SOT343 Datasheet, PHEMT, Filtronic Compound Semiconductors

FPD750SOT343 Features

• Phemt (1850MHZ):
• 0.5 dB N.F.min. 20 dBm Output Power (P1dB) 16.5 dB Small-Signal Gain (SSG) 37 dBm Output IP3 RoHS compliant (Directive 2002/

PDF File Details

Part number:

FPD750SOT343

Manufacturer:

Filtronic Compound Semiconductors

File Size:

810.15kb

Download:

📄 Datasheet

Description:

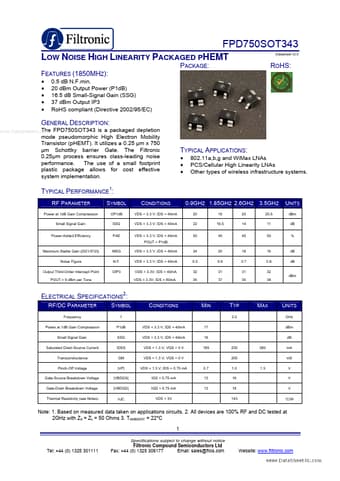

Low noise high linearity packaged phemt. The www.DataSheet4U.com FPD750SOT343 is a packaged depletion mode pseudomorphic High Electron Mobility Transistor (pHEMT). It utiliz

FPD750SOT343 Application

• Applications
• 802.11a,b,g and WiMax LNAs PCS/Cellular High Linearity LNAs Other types of wireless infrastructure syste
