MRF5S9150HR3 SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs

Small Ferrite Bead 47 pF Chip Capacitors 0.8- 8.0 pF Variable Capacitors, Gigatrim 13 pF Chip Capacitor 15 pF Chip Capacitors 12 pF Chip Capacitors 4.3 pF Chip Capacitors 8.2 pF Chip Capacitor 0.6- 4.5 pF Variable Capacitor, Gigatrim 22 pF Chip Capacitor 1 μF, 50 V Tantalum Capacitor 20K pF Chip Cap.

Freescale Semiconductor Technical Data Document Number: MRF5S9150H Rev. 1, 5/2006 RF Power Field Effect Transistors N - Channel Enhancement - Mode Lateral MOSFETs Designed for N - CDMA base station applications with frequencies from 869 to 960 MHz. Suitable for multicarrier amplifier applications. Typical Single - Carrier N - CDMA Performance @ 880 MHz: VDD = 28 Volts, IDQ = 1500 mA, Pout = 33 Watts Avg., IS - 95 CDMA (Pilot, Sync, Paging, Traffic Codes 8 Through 13). Channel Bandwi.

MRF5S9150HR3 Features

* Characterized with Series Equivalent Large - Signal Impedance Parameters www.DataSheet4U.com

* Internally Matched for Ease of Use

* Qualified Up to a Maximum of 32 VDD Operation

* Integrated ESD Protection

* Lower Thermal Resistance Package

* Low Gol

MRF5S9150HR3 Datasheet (554.25 KB)

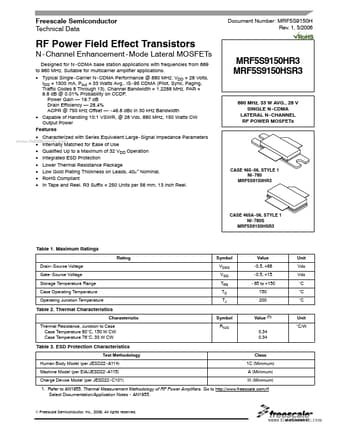

MRF5S9150HR3 Datasheet Preview — Preview of MRF5S9150HR3 PDF

Datasheet Details

Part number:

MRF5S9150HR3

Manufacturer:

Freescale Semiconductor

File Size:

554.25 KB

Description:

Single n-cdma lateral n-channel rf power mosfets.
