MRF6S27015GNR1, MRF6S27015NR1 Datasheet - Freescale Semiconductor

MRF6S27015GNR1, MRF6S27015NR1, RF Power Field Effect Transistors

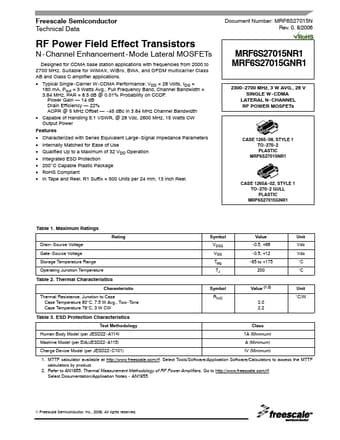

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MRF6S27015N Rev.0, 8/2006 RF Power Field Effect Transistors N - Chann.
100 nF Chip Capacitor 4.

MRF6S27015NR1_FreescaleSemiconductor.pdf

MRF6S27015GNR1 Datasheet Preview — This datasheet PDF includes multiple part numbers: MRF6S27015GNR1, MRF6S27015NR1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MRF6S27015GNR1, MRF6S27015NR1

Manufacturer:

Freescale Semiconductor

File Size:

623.87 KB

Description:

RF Power Field Effect Transistors

Note:

This datasheet PDF includes multiple part numbers: MRF6S27015GNR1, MRF6S27015NR1.
Please refer to the document for exact specifications by model.

Features

* Characterized with Series Equivalent Large - Signal Impedance Parameters
* Internally Matched for Ease of Use
* Qualified Up to a Maximum of 32 VDD Operation
* Integrated ESD Protection
* 200°C Capable Plastic Package
* RoHS Compliant
* In Ta

Applications

* with frequencies from 2000 to 2700 MHz. Suitable for WiMAX, WiBro, BWA, and OFDM multicarrier Class AB and Class C amplifier applications.
* Typical Single - Carrier W - CDMA Performance: VDD = 28 Volts, IDQ = 160 mA, Pout = 3 Watts Avg. , Full Frequency Band, Channel Bandwidth = 3.84 MHz, PA
