ICS8530I-01 LVPECL FANOUT BUFFER

ICS8530I-01 Description

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS8530I-01 LOW SKEW, 1-TO-16 DIFFERENTIAL-TO-3.3V LVPECL FANOUT BUFFER .
The ICS8530I-01 is a low skew, 1-to-16 Differential-to-3.

ICS8530I-01 Features

* (16) differential 3.3V LVPECL outputs
* CLK, nCLK input pair
* CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
* Maximum output frequency: 500MHz
* Translates any single-ended input signal to 3.3V LVPECL le

ICS8530I-01 Applications

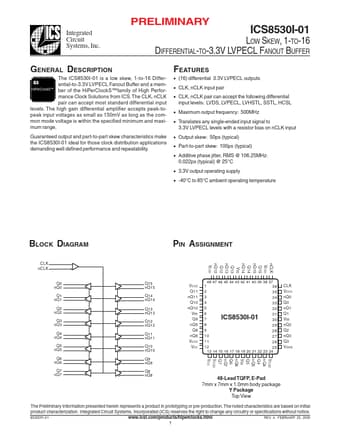

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK nCLK PIN ASSIGNMENT nCLK VCCO Q15 nQ15 Q14 nQ14 VEE Q13 nQ13 Q12 nQ12 VCCO 48 47 46 45 44 43 42 41 40 39 38 37 1 36 2 35 3 34 4 33 5 32 6 31 7 30 8 29 9 28 10 27 11 26 12 25 13 14 15 16 17 18 19 20 21 22 23 24 Q0 nQ0 Q1 nQ1 Q
