DMG8880LK3 Datasheet, Mosfet, INCHANGE

DMG8880LK3 Features

  • Mosfet
  • Drain Current
      –ID= 16.5A@ TC=25℃
  • Drain Source Voltage- : VDSS= 30V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 7.5mΩ(Max)
  • 100%

PDF File Details

Part number:

DMG8880LK3

Manufacturer:

INCHANGE

File Size:

261.40kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

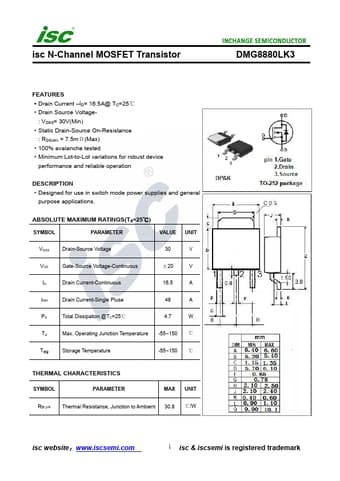

  • Datasheet Preview: DMG8880LK3 📥 Download PDF (261.40kb)
    Page 2 of DMG8880LK3

    DMG8880LK3 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 30 V

    TAGS

    DMG8880LK3
    N-Channel
    MOSFET
    INCHANGE
