DMG8N65SCT - N-Channel MOSFET

INCHANGE

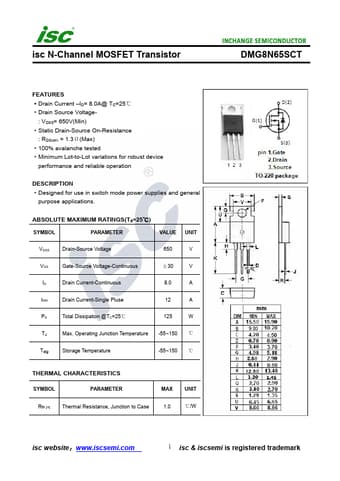

DMG8N65SCT Datasheet Preview — Preview of DMG8N65SCT PDF

Datasheet Details

Part number	DMG8N65SCT
Manufacturer	INCHANGE
File Size	256.44 KB
Description	N-Channel MOSFET
Datasheet	DMG8N65SCT-INCHANGE.pdf

DMG8N65SCT Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 650 V ±30 V ID Drain Current-Continuous 8.0 A IDM Drain Current-Single Pluse 12 A PD Total Dissipation @TC=25℃ 125 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c T

Features

Drain Current.
ID= 8.0A@ TC=25℃.
Drain Source Voltage- : VDSS= 650V(Min).
Static Drain-Source On-Resistance : RDS(on) = 1.3Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
