IPP052N08N5, N-Channel MOSFET

isc N-Channel MOSFET Transistor IPP052N08N5，IIPP052N08N5 *.

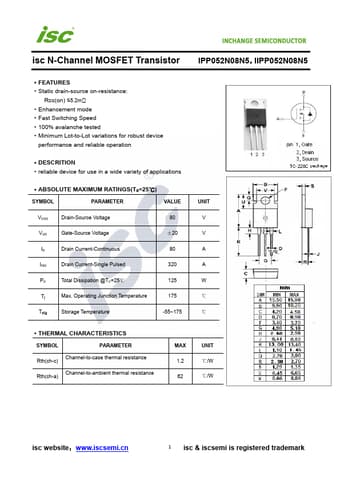

datasheet Preview Page 1 from Datasheet4u.com

IPP052N08N5-INCHANGE.pdf

IPP052N08N5 Datasheet Preview — Preview of IPP052N08N5 PDF

Datasheet Details

Part number:

IPP052N08N5

Manufacturer:

INCHANGE

File Size:

240.64 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤5.2mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 80 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 80 IDM Drain Current-Single Pulsed 320 PD Total Dissipation @TC=25℃ 125 Tj Max. Operating Junction Temperature 175 Tstg Storage Te
