IXTH86N25T Datasheet, Mosfet, INCHANGE

IXTH86N25T Features

  • Mosfet
  • Drain Source Voltage- : VDSS= 250V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 37mΩ(Max)
  • Fast Switching
  • 100% avalanche tested
  • Minimum

PDF File Details

Part number:

IXTH86N25T

Manufacturer:

INCHANGE

File Size:

333.22kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

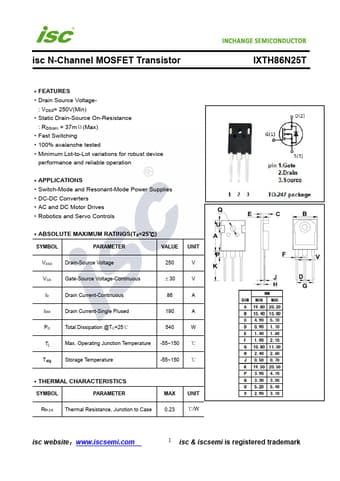

Datasheet Preview: IXTH86N25T 📥 Download PDF (333.22kb)
Page 2 of IXTH86N25T

IXTH86N25T Application

  • Applications
  • Switch-Mode and Resonant-Mode Power Supplies
  • DC-DC Converters
  • AC and DC Motor Drives
  • Robotics and S
