IXTH80N20L Power MOSFET

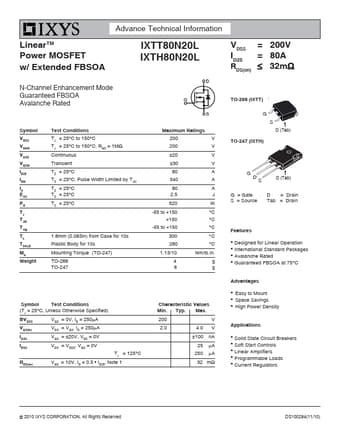

LinearTM Power MOSFET w/ Extended FBSOA Advance Technical Information IXTT80N20L IXTH80N20L VDSS = 200V ID25 = 80A ≤RDS(on) 32mΩ N-Channel Enhancement Mode Guaranteed FBSOA Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 IDM EIAAS PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TTCC = 25°C = 25°C TC = 25°C 1.6mm (0.063in) from Case for 10s Plastic Body for 10s Mount.

IXTH80N20L Features

* z Designed for Linear Operation z International Standard Packages z Avalanche Rated z Guaranteed FBSOA at 75°C Advantages z Easy to Mount z Space Savings z High Power Density Applications z Solid State Circuit Breakers z Soft Start Controls z Linear Amplifiers z Programmable Loads z Current Regulato
