IXTQ180N085T Datasheet, N-channelmosfet, INCHANGE

IXTQ180N085T Features

  • N-channelmosfet
  • Static drain-source on-resistance: RDS(on) ≤ 5.5mΩ@VGS=10V
  • Fully characterized avalanche voltage and current
  • 100% avalanche tested
  • Minimum Lot-to-Lot

PDF File Details

Part number:

IXTQ180N085T

Manufacturer:

INCHANGE

File Size:

254.88kb

Download:

📄 Datasheet

Description:

N-channelmosfet.

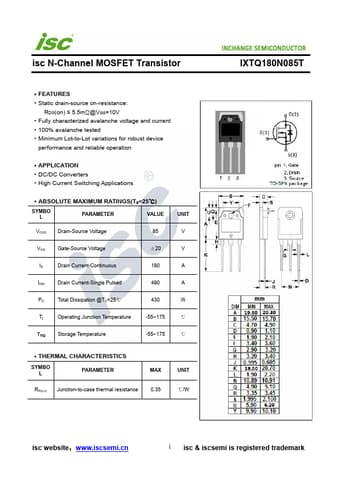

Datasheet Preview: IXTQ180N085T 📥 Download PDF (254.88kb)
Page 2 of IXTQ180N085T

IXTQ180N085T Application

  • Applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBO L PARAMETER VALUE VDSS Drain-Source Voltage 85 UNIT V VGS Gate-Source Voltage
