* z International standard packages z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect Advantages z Easy to mount z Space savings z High power density © 2006 IXYS All rights reserved DS99324E(03/06) Symbol gfs Ciss Coss Crss td(on) tr td(off) tf Qg(o
IXTQ18N60P Datasheet (165.29 KB)
IXTQ18N60P
IXYS
165.29 KB
Power mosfet.

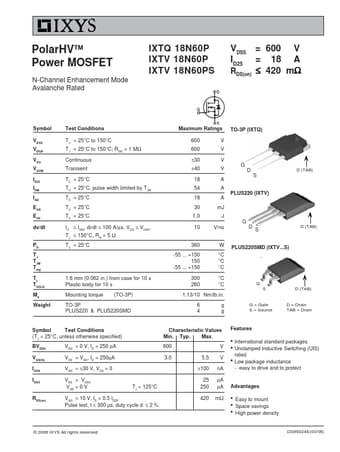

PolarHVTM Power MOSFET
N-Channel Enhancement Mode Avalanche Rated
IXTQ 18N60P IXTV 18N60P IXTV 18N60PS
V = 600 V DSS
ID25 = 18 A ≤ RDS(on) 420 mΩ
S.
