IXTQ180N085T - Power MOSFET

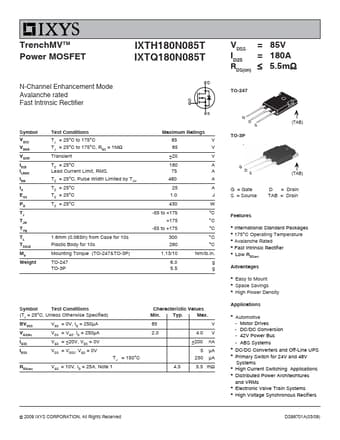

TrenchMVTM Power MOSFET IXTH180N085T IXTQ180N085T N-Channel Enhancement Mode Avalanche rated Fast Intrinsic Rectifier VDSS = 85V ID25 = 180A ≤RDS(on) 5.5mΩ TO-247 Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.063in) from Case for 10s Plastic Body for 10s Mounting Torque (TO-24

IXTQ180N085T Features

* International Standard Packages 175°C Operating Temperature Avalanche Rated Fast Intrinsic Rectifier Low RDS(on) Advantages Easy to Mount Space Savings High Power Density Applications Automotive - Motor Drives - DC/DC Conversion - 42V Power Bus - ABS Systems DC/DC Converters and Off-Line UPS Primary
