STW26NM60ND - N-Channel MOSFET

The STW26NM60ND by INCHANGE is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

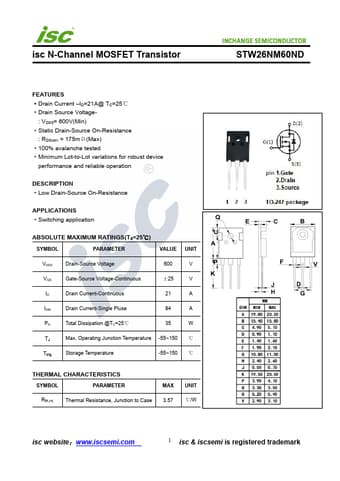

Official preview page of the STW26NM60ND N-Channel MOSFET datasheet (INCHANGE).

Datasheet Details

Part number STW26NM60ND
Manufacturer INCHANGE
File Size 349.25 KB
Description N-Channel MOSFET
Datasheet download datasheet STW26NM60ND-INCHANGE.pdf
Additional preview pages of the STW26NM60ND datasheet.

STW26NM60ND Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 21 A IDM Drain Current-Single Pluse 84 A PD Total Dissipation @TC=25℃ 35 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,
