IXFC20N80P, IXFR20N80P Datasheet - IXYS Corporation

IXFC20N80P PolarHV HiPerFET Power MOSFET

PolarHVTM HiPerFET Power MOSFET IXFC 20N80P IXFR 20N80P Electrically Isolated Back Surface N-Channel Enhancement Mode Fast Recovery Diode Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL www.DataSheet4U.net VDSS = 800 V ID25 = 10 A RDS(on) ≤ 500 mΩ ≤ 250 ns trr Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VD.

IXFC20N80P Features

* z Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation z Low drain to tab capacitance(

IXFR20N80P_IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXFC20N80P, IXFR20N80P. Please refer to the document for exact specifications by model.

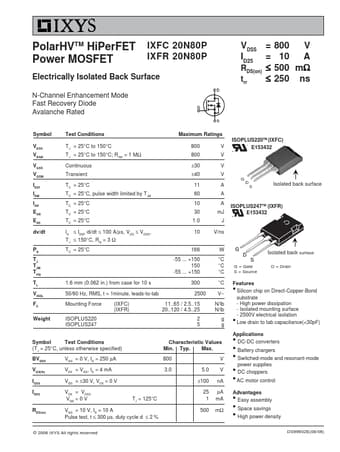

IXFC20N80P Datasheet Preview Page 2 IXFC20N80P Datasheet Preview Page 3

Datasheet Details

Part number:

IXFC20N80P, IXFR20N80P

Manufacturer:

IXYS Corporation

File Size:

152.89 KB

Description:

Polarhv hiperfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXFC20N80P, IXFR20N80P.
Please refer to the document for exact specifications by model.
