IXFC110N10P PolarHT HiPerFET Power MOSFET

PolarHTTM HiPerFET Power MOSFET N-Channel Enhancement Mode Fast Intrinsic Diode Avalanche Rated Preliminary Data Sheet Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Continuous Transient TC = 25°C IXFC 110N10P VDSS ID25 RDS(on) = 100 V = 66 A = 17 mΩ www.DataSheet4U.com Maximum Ratings 100 100 ± 20 ± 30 66 250 60 40 1.0 10 158 -55 +175 175 -55 +150 V V V V A A A mJ J V/ns W °C °C °C °C °C N/lb g Fea.

IXFC110N10P Features

* z Fast intrinsic diode z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect z Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation Advantages z z ISOPLUS220TM (IXFC) E153432 G D

IXFC110N10P_IXYS.pdf

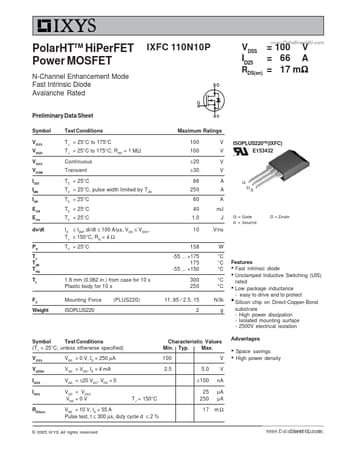

Preview of IXFC110N10P PDF
IXFC110N10P Datasheet Preview Page 2 IXFC110N10P Datasheet Preview Page 3

Datasheet Details

Part number:

IXFC110N10P

Manufacturer:

IXYS

File Size:

114.81 KB

Description:

Polarht hiperfet power mosfet.
