IXFH16N80P Power MOSFET

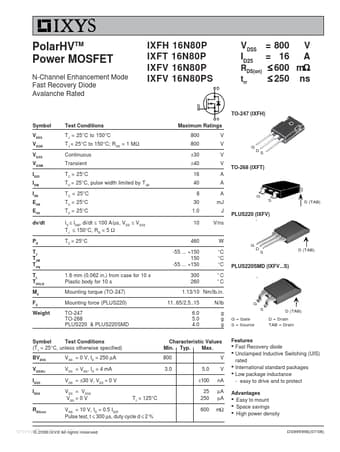

PolarHVTM Power MOSFET N-Channel Enhancement Mode Fast Recovery Diode Avalanche Rated IXFH 16N80P IXFT 16N80P IXFV 16N80P IXFV 16N80PS VDSS = 800 V ID25 = 16 A RDS(on) ≤ 600 mΩ ≤ 250 ns trr TO-247 (IXFH) Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAR EAS dv/dt Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS TJ ≤ 150°C, RG = 5 Ω TC = 25°C Maxi.

IXFH16N80P Features

* z Fast Recovery diode z Unclamped Inductive Switching (UIS) rated z International standard packages z Low package inductance - easy to drive and to protect Advantages z Easy to mount z Space savings z High power density VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 μs, duty cycle d ≤ 2 % www.DataS
