IXFH60N50P3 Polar3 HiperFET Power MOSFET

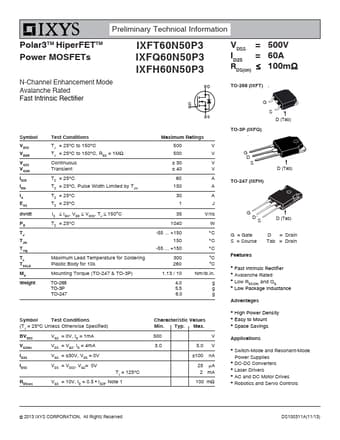

Advance Technical Information Polar3TM HiperFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier IXFT60N50P3 IXFQ60N50P3 IXFH60N50P3 VDSS ID25 RDS(on) = 500V = 60A ≤ 100mΩ TO-268 (IXFT) G S D (Tab) TO-3P (IXFQ) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL Tsold Md Weight www.DataSheet4U.net Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C .

IXFH60N50P3 Features

* z z z z G D S D (Tab) TO-247 (IXFH) G D S D (Tab) D = Drain Tab = Drain G = Gate S = Source 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 seconds Mounting Torque (TO-247 & TO-3P) TO-268 TO-3P TO-247 300 260 1.13 / 10 4.0 5.5 6.0 Fast Intrinsic Rectifier Avalanche Rated Low RDS(O
