IXFH66N20Q Power MOSFET

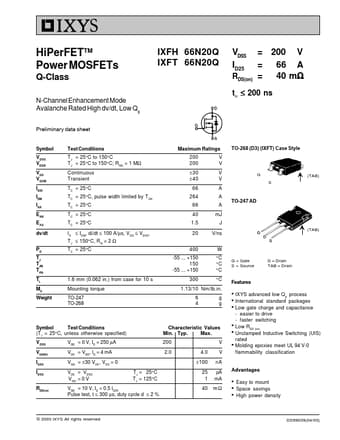

HiPerFETTM Power MOSFETs Q-Class N-Channel Enhancement Mode Avalanche Rated High dv/dt, Low Qg Preliminary data sheet IXFH 66N20Q IXFT 66N20Q VDSS ID25 RDS(on) = 200 V = 66 A = 40 mΩ trr ≤ 200 ns Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, .

IXFH66N20Q Features

* z z z 1.13/10 Nm/lb.in. 6 4 g g Symbol Test Conditions (TJ = 25°C, unless otherwise specified) VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 4 mA VGS = ±30 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 25°C TJ = 125°C Characteristic Values Min. Typ. Max. 200 2.0 4.0 ±100 25 1 40
