IXGH30N120C3H1

High speed PT IGBTs

IXGH30N120C3H1 Features

* z Optimized for Low Conduction and Switching Losses z Square RBSOA z Anti-Parallel Ultra Fast Diode z Avalanche Rated z International Standard Package Advantages z High Power Density z Low Gate Drive Requirement Applications z AC Motor Speed Control z DC Servo and Robot Drives z DC Choppers z Uninte

IXGH30N120C3H1 Datasheet (177.14 KB)

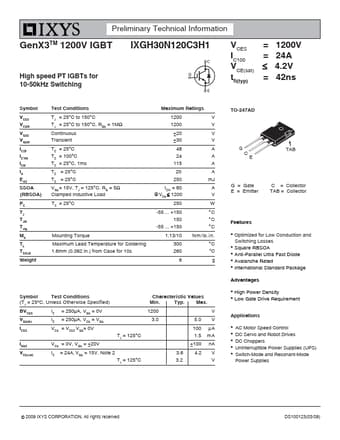

Preview of IXGH30N120C3H1 PDF

Datasheet Details

Part number:

IXGH30N120C3H1

Manufacturer:

IXYS Corporation

File Size:

177.14 KB

Description:

High speed pt igbts.
Preliminary Technical Information GenX3TM 1200V IGBT IXGH30N120C3H1 High speed PT IGBTs for 10-50kHz Switching VCES IC100 VCE(sat) tfi(typ) = 1200V.
