* International standard package JEDEC TO-247 AD
* High current handling capability
* Newest generation HDMOSTM Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Maximum Tab temperature for soldering SMD devices for 10 s Md Weight Mounting torque (M3) proces

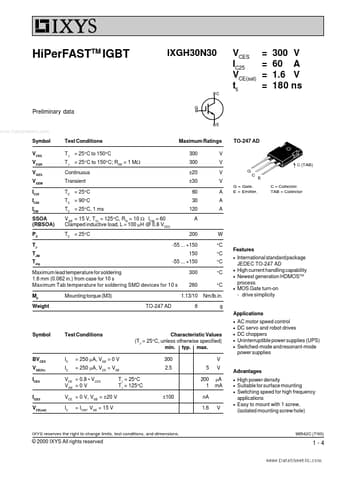

IXGH30N30 Datasheet (108.70 KB)
IXGH30N30
IXYS Corporation
108.70 KB
Hiperfast igbt.
HiPerFASTTM IGBT
IXGH30N30
VCES IC25 VCE(sat) tfi
= = = =
300 V 60 A 1.6 V 180 ns
Preliminary data
www.DataSheet4U.com
Symbol VCES VCGR VGES VG.
