IXGT30N60B HiPerFASTTM IGBT

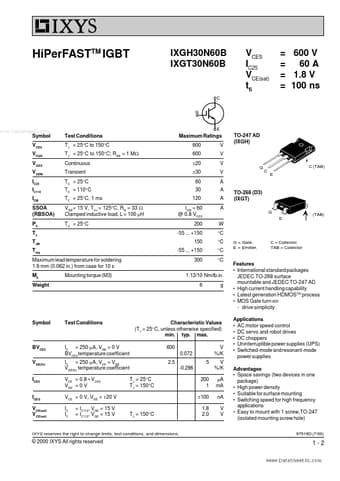

HiPerFASTTM IGBT IXGH30N60B IXGT30N60B VCES IC25 VCE(sat) tfi = 600 V = 60 A = 1.8 V = 100 ns www.DataSheet4U.com Symbol VCES VCGR Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 33 W Clamped inductive load, L = 100 mH TC = 25°C Maximum Ratings 600 600 ±20 ±30 60 30 120 ICM = 60 @ 0.8 VCES 200 -55 +150 150 -55 +150 300 V V V V A A A A W °C °C °C °C TO-247 AD (IXGH) VGES VGEM IC25 .

IXGT30N60B Features

* International standard packages JEDEC TO-268 surface mountable and JEDEC TO-247 AD

* High current handling capability

* Latest generation HDMOSTM process

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed control

* DC servo and robot

IXGT30N60B Datasheet (85.58 KB)
