IXGT30N60BU1, IXGH30N60BU1 Datasheet - IXYS Corporation

IXGT30N60BU1 HiPerFAST IGBT

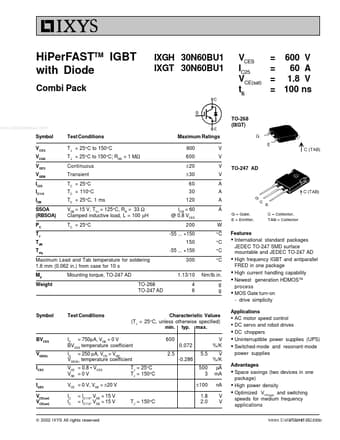

HiPerFASTTM IGBT with Diode Combi Pack IXGH 30N60BU1 IXGT 30N60BU1 VCES IC25 VCE(sat) tfi TO-268 (IXGT) = 600 V = 60 A = 1.8 V = 100 ns www.DataSheet4U.com Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 33 Ω Clamped inductive load, L = 100 µH TC = 25°C Maximum Ratings 600 600 ± 20 ± 30 60 30 120 ICM = 60 @ 0.8 VCES.

IXGT30N60BU1 Features

* Ÿ International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD Ÿ High frequency IGBT and antiparallel FRED in one package Ÿ High current handling capability Ÿ Newest generation HDMOSTM process Ÿ MOS Gate turn-on - drive simplicity Applications Ÿ AC motor speed control Ÿ DC

IXGH30N60BU1_IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXGT30N60BU1, IXGH30N60BU1. Please refer to the document for exact specifications by model.
IXGT30N60BU1 Datasheet Preview Page 2 IXGT30N60BU1 Datasheet Preview Page 3

Datasheet Details

Part number:

IXGT30N60BU1, IXGH30N60BU1

Manufacturer:

IXYS Corporation

File Size:

174.36 KB

Description:

Hiperfast igbt.

Note:

This datasheet PDF includes multiple part numbers: IXGT30N60BU1, IXGH30N60BU1.
Please refer to the document for exact specifications by model.
