* z International Standard Packages z Avalanche Rated z Low Package Inductance (< 5nH) z Fast Switching Times Advantages z Easy to Mount z Space Savings z High Power Density Applications z Switched-Mode and Resonant-Mode Power Supplies z FlyBack Inverters z DC Choppers © 2009 IXYS CORPORATION, All Ri
IXTA2N100 Datasheet (141.22 KB)
IXTA2N100
IXYS Corporation
141.22 KB
High voltage mosfet.

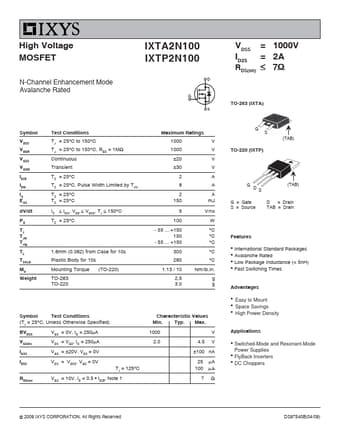

High Voltage MOSFET
N-Channel Enhancement Mode Avalanche Rated
IXTA2N100 IXTP2N100
VDSS = ID25 = ≤RDS(on)
1000V 2A 7Ω
TO-263 (IXTA)
Symbol VDSS V.
