IXTQ152N085T N-Channel MOSFET

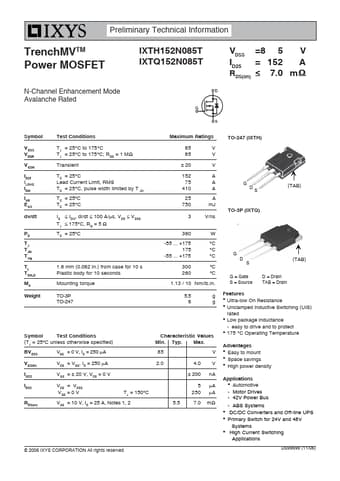

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH152N085T IXTQ152N085T VDSS ID25 RDS(on) =8 5 V = 152 A ≤ 7.0 m Ω Symbol V DSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25 °C to 175 °C TJ = 25°C to 175 °C; R GS = 1 M Ω Transient TC = 25 °C Lead Current Limit, RMS TC = 25 °C, pulse width limited by T JM TC = 25°C TC = 25 °C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS TJ ≤ 175°C, RG = 5 Ω .

IXTQ152N085T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 °C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - 42V Power Bus - ABS Systems DC/DC Converters and Off
