IXTQ200N10T - Power MOSFET

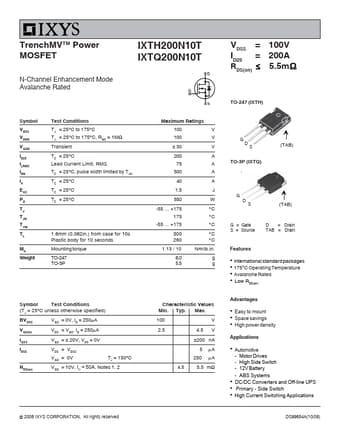

TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH200N10T IXTQ200N10T Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from case for 10s Plastic body for 10 seconds Mounting torque TO-247 TO-3P Maximum Ratings 100 100 V V ± 30 V 200 A 75 A 500 A 40 A 1.5

IXTQ200N10T Features

* International standard packages 175°C Operating Temperature Avalanche Rated Low RDS(on) Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - High Side Switch - 12V Battery - ABS Systems DC/DC Converters and Off-line UPS Primary - Side Switch High Current
