IXTQ200N06P

N-ChannelMOSFET

IXTQ200N06P Features

* Drain Source Voltage- : VDSS= 60V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 6mΩ(Max)

* Fast Switching

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* APPLICATIONS

* Switch-Mode and Resonant-Mode Power S

IXTQ200N06P Datasheet (267.94 KB)

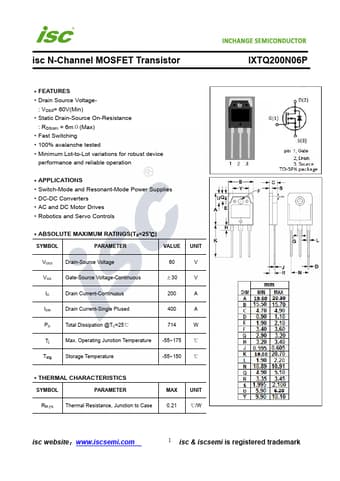

Preview of IXTQ200N06P PDF

Datasheet Details

Part number:

IXTQ200N06P

Manufacturer:

INCHANGE

File Size:

267.94 KB

Description:

N-channelmosfet.
