IXTQ230N085T - Power MOSFET

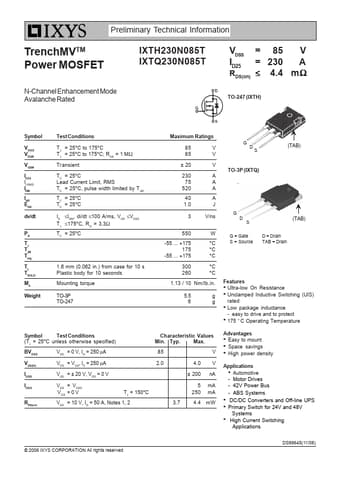

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH230N085T IXTQ230N085T VDSS = ID25 = RDS(on) ≤ 85 230 4.4 V A mΩ TO-247 (IXTH) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤IDM, di/dt ≤100 A/ms, VDD ≤VDSS TJ ≤175°C, RG = 3.3Ω

IXTQ230N085T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 ° C Operating Temperature Symbol Test Conditions (TJ = 25°C unless otherwise specified) BVDSS VGS = 0 V, ID = 250 µA VGS(th) VDS = VGS, ID = 250 µA IGSS VGS = ± 20 V, V
