IXTQ220N055T, IXTH220N055T Datasheet - IXYS Corporation

IXTQ220N055T Power MOSFET

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH220N055T IXTQ220N055T VDSS = ID25 = RDS(on) ≤ 55 220 4.0 V A mΩ TO-247 (IXTH) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25° C to 175° C TJ = 25° C to 175° C; RGS = 1 MΩ Transient TC = 25° C Lead Current Limit, RMS TC = 25° C, pulse width limited by TJM TC = 25° C TC = 25° C IS ≤IDM, di/dt ≤100 A/µs, VDD ≤VDSS TJ ≤175° C, .

IXTQ220N055T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 ° C Operating Temperature Symbol Test Conditions (TJ = 25° C unless otherwise specified) BVDSS VGS = 0 V, ID = 250 µA VGS(th) VDS = VGS, ID = 1 mA IGSS VGS = ± 20 V, VD

IXTH220N055T-IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXTQ220N055T, IXTH220N055T. Please refer to the document for exact specifications by model.

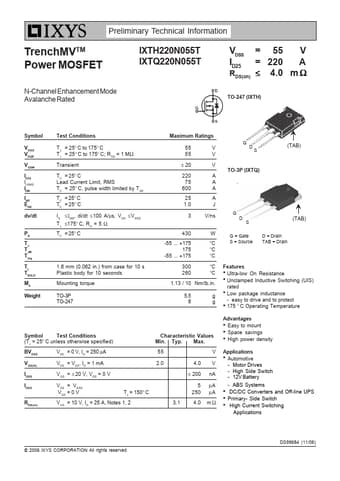

IXTQ220N055T Datasheet Preview Page 2 IXTQ220N055T Datasheet Preview Page 3

Datasheet Details

Part number:

IXTQ220N055T, IXTH220N055T

Manufacturer:

IXYS Corporation

File Size:

195.48 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTQ220N055T, IXTH220N055T.
Please refer to the document for exact specifications by model.
