IXBT20N300 Bipolar MOS Transistor

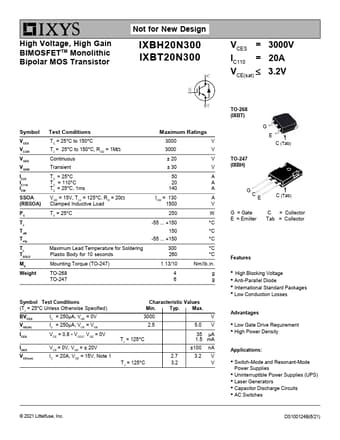

High Voltage, High Gain BIMOSFETTM Monolithic Bipolar MOS Transistor Not for New Design IXBH20N300 IXBT20N300 VCES = IC110 = VCE(sat)  3000V 20A 3.2V Symbol VCES VCGR VGES V GEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg T L T SOLD Md Weight Test Conditions TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 20 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering Plastic Body for 10 secon.

IXBT20N300 Features

* High Blocking Voltage

* Anti-Parallel Diode

* International Standard Packages

* Low Conduction Losses Advantages

* Low Gate Drive Requirement

* High Power Density Applications:

* Switch-Mode and Resonant-Mode Power Supplies

* Uninterruptible Power Supplies (UPS)

IXBH20N300-IXYS.pdf

IXBT20N300 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXBT20N300, IXBH20N300. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXBT20N300, IXBH20N300

Manufacturer:

IXYS

File Size:

771.98 KB

Description:

Bipolar mos transistor.

Note:

This datasheet PDF includes multiple part numbers: IXBT20N300, IXBH20N300.
Please refer to the document for exact specifications by model.
