IXFN70N120SK - SiC Power MOSFET

IXFN70N120SK Description

SiC Power MOSFET Kelvin Source gate connection Part number IXFN70N120SK IXFN70N120SK ID25 = 68 A VDSS = 1200 V R = DS(on) max 34 mΩ D (3) KS G.

IXFN70N120SK Features

* / Advantages:
* High speed switching with low capacitances
* High blocking voltage with low RDS(on)
* Easy to parallel and simple to drive
* Resistant to latch-up

IXFN70N120SK Applications

* Solar inverters
* High voltage DC/DC converters
* Motor drives
* Switch mode power supplies
* UPS
* Battery chargers
* Induction heating Package: SOT-227B (minibloc)
* Isolation Voltage: 2500 V~
* Industry standard outline

📥 Download Datasheet

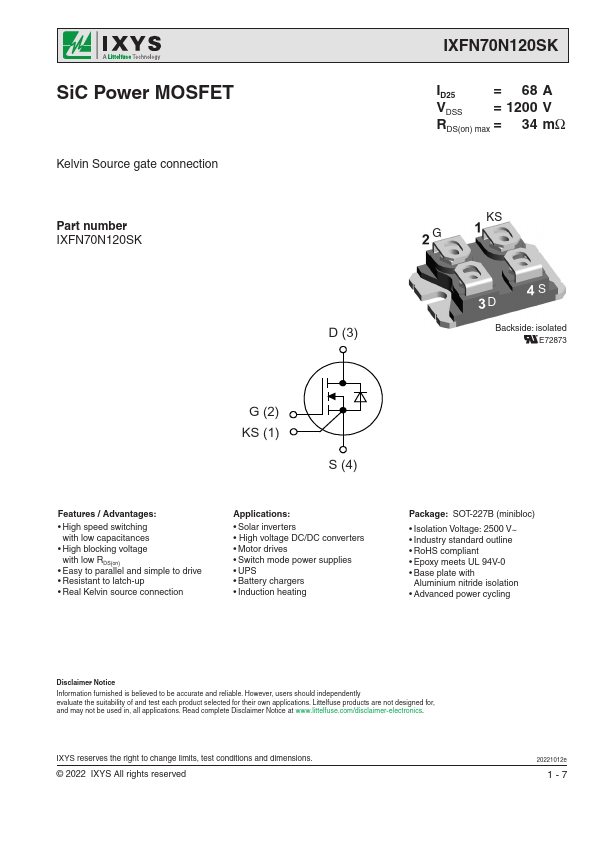

Preview of IXFN70N120SK PDF

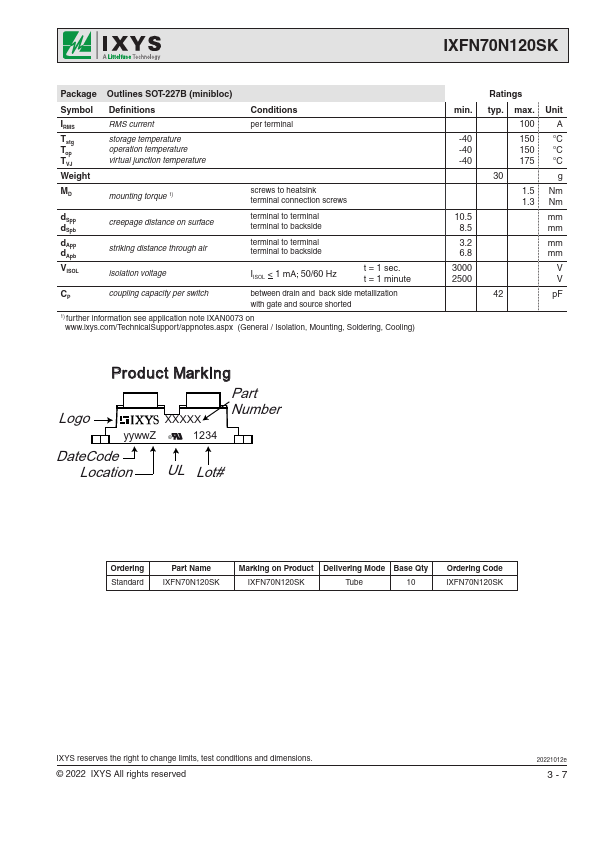

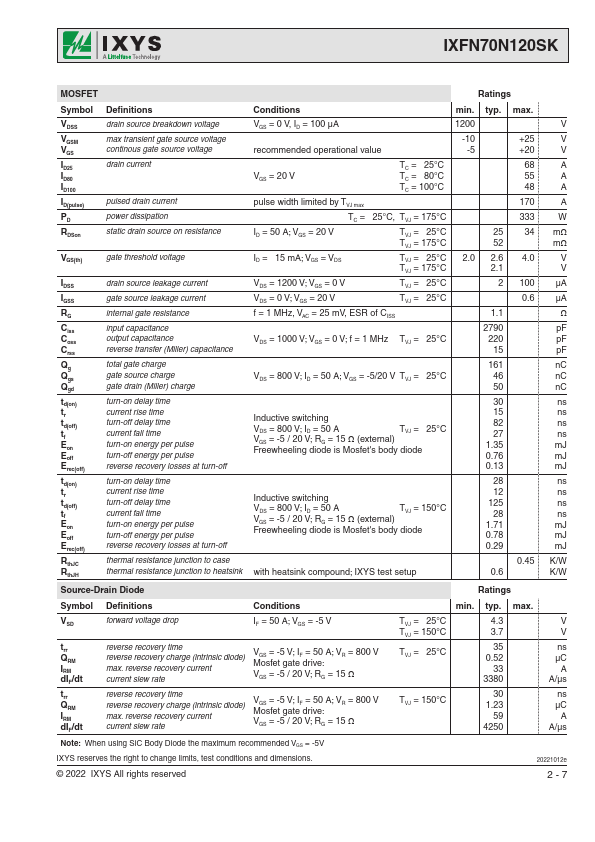

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFN70N120SK
Manufacturer
IXYS
File Size
493.89 KB
Datasheet
IXFN70N120SK-IXYS.pdf
Description
SiC Power MOSFET
