IXFT30N60X Datasheet - IXYS

IXFT30N60X Power MOSFET

X-Class HiPerFETTM Power MOSFET Preliminary Technical Information IXFT30N60X IXFQ30N60X IXFH30N60X VDSS = ID25 = RDS(on) 600V 30A 155m N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C Maximum Lead.

IXFT30N60X Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFT30N60X Datasheet (186.33 KB)

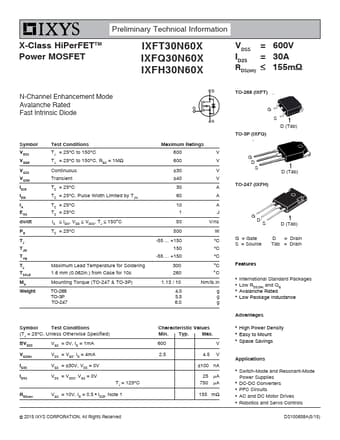

IXFT30N60X Datasheet Preview — Preview of IXFT30N60X PDF

Datasheet Details

Part number:

IXFT30N60X

Manufacturer:

IXYS

File Size:

186.33 KB

Description:

Power mosfet.
