* z z z International standard packages Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 µs, duty cycle d ≤ 2 % 270 mΩ Advantages z z z Easy to mount Space savings High power density DS99351A(03/05) © 2
IXTQ22N50P Datasheet (227.58 KB)
IXTQ22N50P
IXYS
227.58 KB
Polarhv power mosfet.
Advance Technical Information
www.DataSheet4U.com

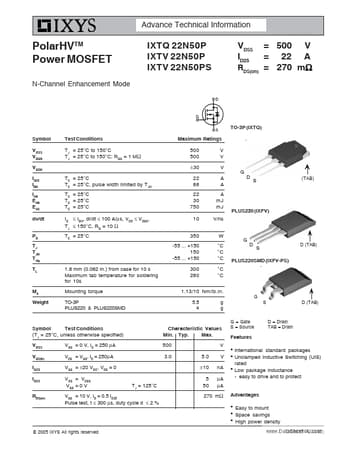

PolarHVTM Power MOSFET
N-Channel Enhancement Mode
IXTQ 22N50P IXTV 22N50P IXTV 22N50PS
VDSS ID25
.
